Automatic Voltage Regulator (AVR) Product Range for Zimbabwe

An automatic voltage regulator (AVR) is a device that regulates electrical voltage automatically, thus, it takes a fluctuating voltage level and turn it into a constant voltage level. Our household AVRs can be used to protect you expensive refrigerators, computers, televisions from blowing when your power supply fluctuates. We also supply heavy duty AVRs for businesses and industrial companies looking to protect any expensive equipment from voltage fluctuations.

Listed Below are our Single Phase automatic voltage regulator (AVR) products and our three phase automatic voltage regulator (AVR) products. Simply look at the descriptions next to each product for our recommendation on what to use each model listed below for as well as in depth technical specifications for each of our models.

Single Phase Automatic Voltage Regulator (AVR) Products

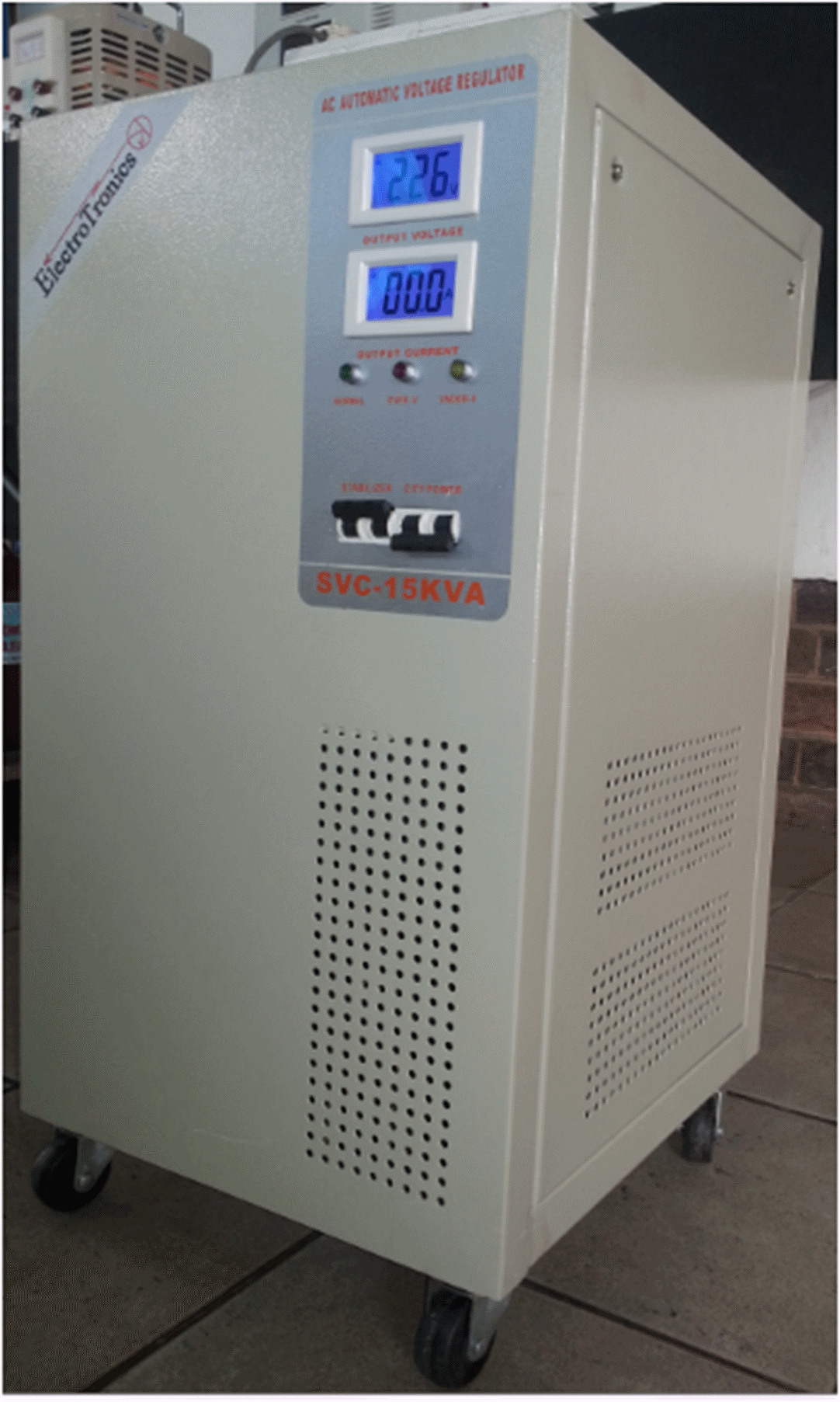

15 Kva Automatic Voltage Regulator (AVR) single phase

Recommended Use

Supply complete house electrics, Server rooms, ISP’s.

Technical Specs
  • 15 Kva (15,000 VA, 65 amps)
  • 1Phase, Servomotor-type AVR, With LCD displays showing output voltage and current
  • Input voltage : 160 to 270VAC/1Phase
  • Output voltage: 230VAC(Stabilized)/1Phase (can be custom adjusted higher or lower on request)
  • Accuracy of voltage: +/-2.5%
  • Response time: <1sec(when input voltage fluctuation 10%)
  • Over-voltage protection: 250V+/-5V/1Phase
  • Under-voltage protection: 180V+/-5V/1Phase
  • Bypass switch

 Single phase Automatic Voltage Regulator (Voltage stabilizer, AVR) Servo motor



Recommended Use

Televisions, Satellite equipment, Computers, Smaller borehole/water pump, computers, servers, just to name a few appliances. However, we do have several different models so check what each AVR models so check the technical specs of each model below for a rough estimate of what equipment is recommended for each model.



Technical Specs

* Look Further down the page for a detailed table on each ‘Type’ i.e. model number listed below and what appliances it is recommended for.

Input 150-260VAC, Output 230V ac +-3%

AVR2 Specs





 Single phase Automatic Voltage Regulator Servo motor



Recommended Use

Televisions, Satellite equipment, Computers, Smaller borehole/water pump, computers, servers, just to name a few appliances. However, we do have several different models so check what each AVR models so check the technical specs of each model below for a rough estimate of what equipment is recommended for each model.





Technical Specs

* Look Further down the page for a detailed table on each ‘Type’ i.e. model number listed below and what appliances it is recommended for.

Input 160-250VAC, Output 220V+-3%

AVR3 Specs

Three Phase Automatic Voltage Regulator (AVR) Products

  Automatic voltage regulator (voltage stabilizer, AVR) – Compact type



Recommended Use
  • 3 Phase servomotor AVR Specs for unbalanced input voltage and output load
  • Independent sensing and control of each phase
  • Output voltage stabilized at 400 volts (voltage can be custom adjusted) at standard ±2.5% stability
  • For input Mains voltage change of 280 to 470 volts (-30% i.e. 280 volts to +18% i.e. 470 volts
    at 50 Hz ± 2 Hz.)
  • LCD Digital voltmeter
  • Ampere meter
  • Bypass switch
  • Over/Under voltage protection
  • Phase failure protection
  • Fits in small places
Technical Specs

AVR4 Specs

 Automatic voltage regulator (voltage stabilizer, AVR) – heavy duty industrial type BW-F AVR Type



Recommended Use

3 Phase servomotor AVR for unbalanced input voltage and unbalanced output load:-

  • Output voltage stabilized at 400 volts (voltage can be custom adjusted) at standard ±3% stability )
  • For unbalanced input voltage change of 20% i.e. 320 volts to 480 volts
  • Independent sensing and control of each phase
  • Bypass switch, Over/Under voltage protection, Single phasing protection
Technical Specs

AVR5 Specs

 1,000kVA AVR being installed

 AVR T 5kva 248v input(left) and 250v input(right), regulated 230V output
